05
CUPLOCK & APS
Scaffolding systems
Cuplock and all-purpose scaffolding components for construction and access work.
Cuplock & APS48.3 mm OD APS tube
VERTICAL SUPPORT · MANUFACTURED IN CHENNAI
Adjustable steel props & jacks
Telescopic props for temporary vertical formwork support. Our team can discuss the required model and working height.
Share your required size, quantity and delivery location for a product quotation.

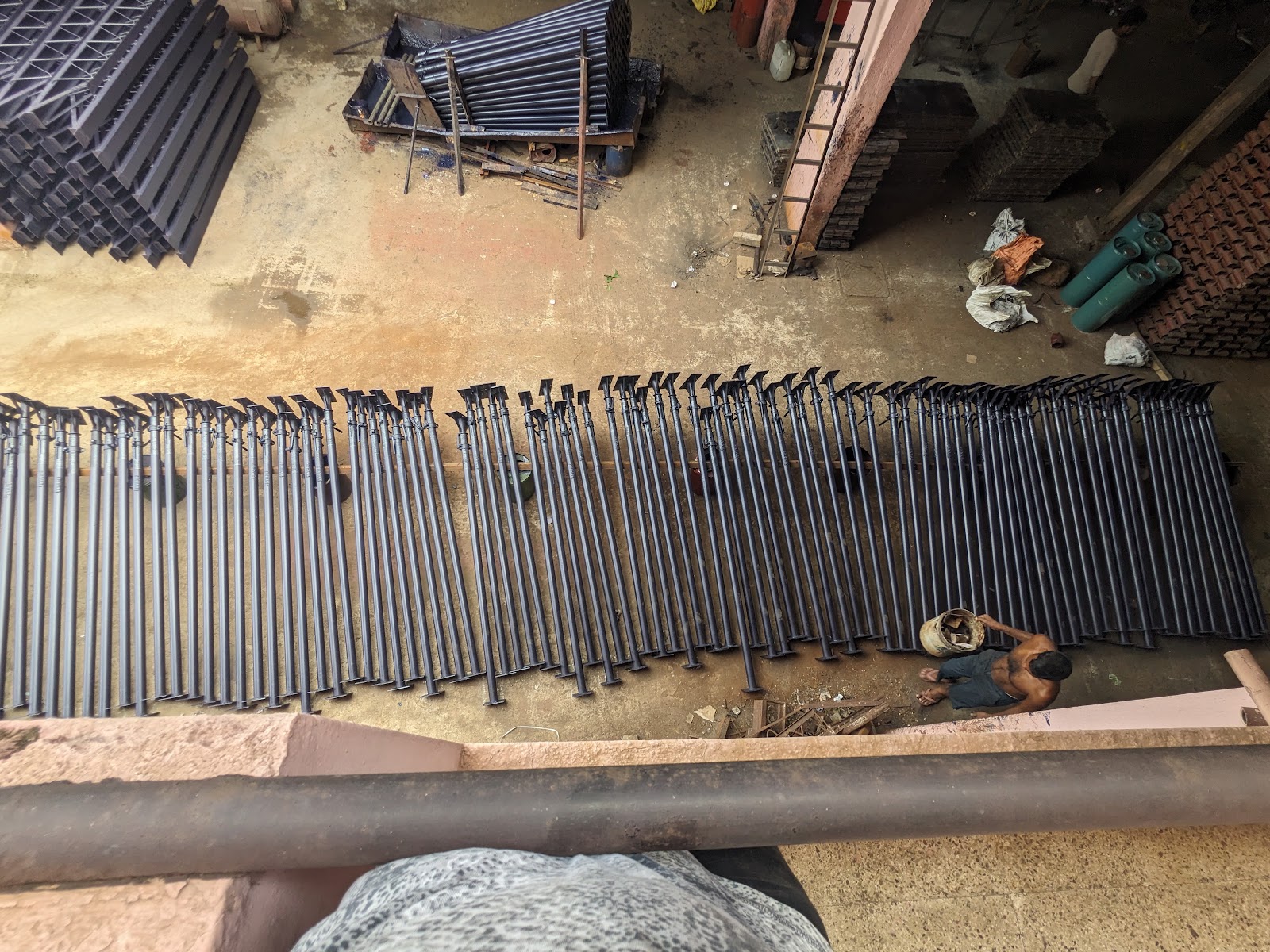

Props & jacks from our Chennai workshop.
Adjustable steel props are also known as telescopic props, prop jacks or jacky in site enquiries.

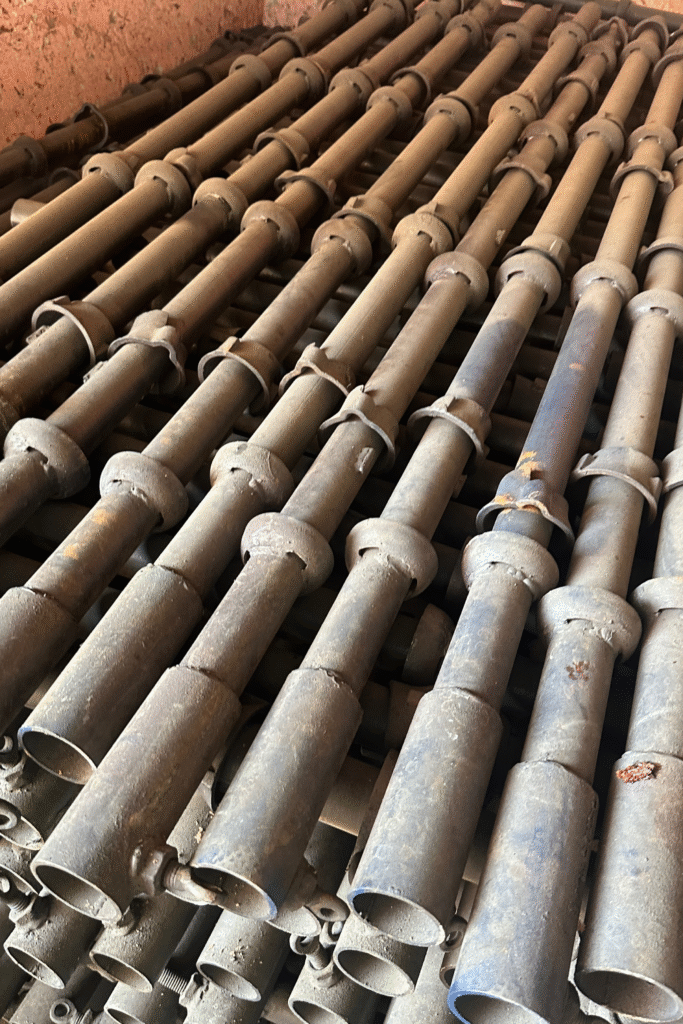

URS Engineering manufactures props for temporary vertical support of centering and formwork. The telescopic inner and outer pipes allow adjustment within the model’s working range. Our catalogue lists the pipe diameters and plate dimensions to help you discuss a matching requirement with the factory.
What information should I send for a prop jack order?
Share the required working height, model or drawing, quantity and delivery location. Confirm the height range and intended support arrangement before ordering; pipe dimensions alone do not establish a safe working load.
PRODUCT INFORMATION
Details that help
you plan.
Confirm the required model and dimensions with our team when ordering.
| Product type | Telescopic normal prop-jack |
|---|---|
| Outer pipe | 60.3 mm OD × 3.6 mm thick |
| Inner pipe | 48.3 mm OD × 2.9 mm thick |
| Base plate | 150 × 150 × 6 mm |
| Top plate | 100 × 100 × 6 mm |
| Finish | Painted URS Engineering blue |
Dimensions shown are from the current website catalogue. Final specifications, availability and commercial terms are confirmed in your quotation.
