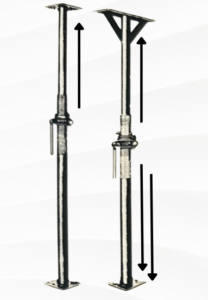

URS ENGINEERING Make Telescopic Normal PROP – JACK

URS ENGINEERING Telescopic Normal Prop-Jack is offered in multiple
models with adjustable lengths. Each prop jack is fabricated from high-grade steel tubing and includes a base plate, top plate, and heavy-duty adjustable jack nut. All specifications, capacities, and pricing are outlined per model below:

Model 1:
• Size (Closed + Extended): 2.0 m + 2.0 m
• Approximate Weight: 17.50 kg (+/- 0.50 kg)
• Safe Axial Load (Closed, Min.): 2900 kg
• Safe Axial Load (Extended, Max.): 2000 kg

Model 2:
• Size (Closed + Extended): 2.0 m + 3.0 m
• Approximate Weight: 19.50 kg (+/- 0.50 kg)
• Safe Axial Load (Closed, Min.): 2600 kg
• Safe Axial Load (Extended, Max.): 1600 kg

Model 3:
• Size (Closed + Extended): 3.0 m + 3.0 m
• Approximate Weight: 29.50 kg (+/- 0.50 kg)
• Safe Axial Load (Closed, Min.): 2000 kg
• Safe Axial Load (Extended, Max.): 1500 kg

Technical Specifications:
• Material: IS 1239 / 1161 YST 210 grade steel pipe (conforming to IS:1161–1998)
• Outer Pipe: 50 NB (60.3 mm OD × 3.6 mm thick)
• Inner Pipe: 40 NB (48.3 mm OD × 2.9 mm thick)
• Base & Top Plates: 150 mm × 150 mm × 6 mm MS plate for bottom & 100mm × 100 mm × 6 mm MS plate for top

• Finish: Painted in URS ENGINEERING Blue (inside and outside of pipes).

Terms & Conditions:
1. To confirm your order, a 50% advance payment is required as part of the commitment process.
2. GST @ 18% applicable extra on all purchases.
3. Transport Charges are applicable Extra as Actuals.
